ZMap Internet scanner, en este artículo de hoy traemos ZMap, se define la herramienta como un escáner de red de código libre, lo que caracteriza a este escáner de red de otros es que es capaz de hacer un escáner completo a todo el espacio de direcciones IPv4 en tan sólo 45 minutos, eso sí, deberemos tener en nuestros hogares una conexión simétrica a velocidad de 1Gbps, velocidad a la que no todos tendremos acceso.

Índice

    ZMap Internet scanner a quien va dirigida esta herramienta

    Esta herramienta está dirigida a investigadores, estudiantes y entusiastas de las redes de ordenadores.

    ZMap está soportada por los siguientes sistemas operativos.

    • Debian
    • Ubuntu
    • Fedora
    • Red Hat Enterprise Linux
    • CentOS

    En mi caso, voy a usarla en un sistema que en el que corre Ubuntu.

    Antes de bajarla y compilar tendremos que instalar algunas dependencias.

    sudo apt-get install libgmp3-dev libpcap-dev gengetopt



    Una vez que, hemos instalado las dependencias, deberemos de bajar la herramienta, hay dos opciones dsponibles, bajarse el tar.gz o clonar directamente de Github.

    En mi caso, clonaré de Github y así si quiero actualizar solo tendré que hacer git pull y volver a compilar.

    Para compilar la herramienta solo tendremos que ir a src/ y hacer make y make install.

    Una de las primeras que prueba que hice fue escaner 10000 hosts en busca del puerto 25. Para hacer esto, basta con correr ZMap de la siguiente forma:

    [email protected]:~# zmap --bandwidth=10M --target-port=25 --max-targets=10000 --output-file=results.txt
    Aug 19 07:42:54.359 [INFO] zmap: started
     0:01 11%; send: 10000 done (12.9 Kp/s avg); recv: 3 2 p/s (2 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
     0:02 23%; send: 10000 done (12.9 Kp/s avg); recv: 3 0 p/s (1 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
     0:03 34%; send: 10000 done (12.9 Kp/s avg); recv: 3 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
     0:04 46%; send: 10000 done (12.9 Kp/s avg); recv: 3 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
     0:05 57% (3s left); send: 10000 done (12.9 Kp/s avg); recv: 3 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
     0:06 68% (2s left); send: 10000 done (12.9 Kp/s avg); recv: 3 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
     0:07 80% (1s left); send: 10000 done (12.9 Kp/s avg); recv: 3 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
     0:08 91% (0s left); send: 10000 done (12.9 Kp/s avg); recv: 3 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
     0:09 103% (0s left); send: 10000 done (12.9 Kp/s avg); recv: 3 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.03%
    Aug 19 07:43:04.451 [INFO] zmap: completed



    Si miramos el contenido del fichero results,txt que es donde he guardado los resultados:

    [email protected]:~# cat results.txt
    213.246.156.148
    163.16.44.104
    61.57.32.154



    Si queremos lanzar ZMap, pero con los parámetros reducidos.

    [email protected]:~# zmap -p 23 -N 10 -B 1M -o resultados_25.txt
    Aug 19 09:36:31.683 [INFO] zmap: started
     0:01 80%; send: 1470 1.47 Kp/s (1.46 Kp/s avg); recv: 8 7 p/s (7 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.54%
    Aug 19 09:36:33.774 [INFO] zmap: completed
    [email protected]:~# more resultados_25.txt
    143.160.61.169
    113.63.226.184
    217.194.195.200
    80.11.76.213
    195.88.91.22
    123.24.195.124
    94.20.219.157
    180.43.215.15
    222.131.30.119
    218.62.20.93



    Si no especificamos ancho de banda ni límite de host, está claro que el escaneo se demorará mas tiempo.

    [email protected]:~# zmap --target-port=8080 --output-file=resultados_8080.txt
    Aug 19 09:38:53.477 [INFO] zmap: started
     0:01 0%; send: 18551 18.5 Kp/s (18.4 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:02 0%; send: 37377 18.8 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:03 0%; send: 56118 18.7 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:04 0%; send: 74834 18.7 Kp/s (18.7 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:05 0% (2d07h left); send: 93693 18.9 Kp/s (18.7 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:06 0% (2d07h left); send: 111996 18.3 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:07 0% (2d07h left); send: 130548 18.6 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:08 0% (2d07h left); send: 149214 18.7 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:09 0% (2d07h left); send: 167837 18.6 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:10 0% (2d07h left); send: 186361 18.5 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:11 0% (2d07h left); send: 205065 18.7 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:12 0% (2d07h left); send: 223693 18.6 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:13 0% (2d07h left); send: 242297 18.6 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:14 0% (2d07h left); send: 260935 18.6 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:15 0% (2d07h left); send: 279495 18.6 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:16 0% (2d07h left); send: 297910 18.4 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:17 0% (2d07h left); send: 316723 18.8 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:18 0% (2d07h left); send: 335076 18.4 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:19 0% (2d07h left); send: 353652 18.6 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:20 0% (2d07h left); send: 372047 18.4 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:21 0% (2d07h left); send: 390340 18.3 Kp/s (18.6 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:22 0% (2d07h left); send: 408427 18.1 Kp/s (18.5 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:23 0% (2d07h left); send: 426574 18.1 Kp/s (18.5 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:24 0% (2d07h left); send: 444466 17.9 Kp/s (18.5 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%
     0:25 0% (2d07h left); send: 462865 18.4 Kp/s (18.5 Kp/s avg); recv: 0 0 p/s (0 p/s avg); drops: 0 p/s (0 p/s avg); hits: 0.00%



    Si queremos ver algunos ejemplos de esos puertos 8080 que se han encontrado.

    [email protected]:~# nmap -vv -PN -p 8080 -iL 8080.txt -A

    Starting Nmap 5.21 ( http://nmap.org ) at 2013-08-19 09:41 EDT
    NSE: Loaded 36 scripts for scanning.
    Initiating Parallel DNS resolution of 10 hosts. at 09:41
    Completed Parallel DNS resolution of 10 hosts. at 09:41, 9.55s elapsed
    Initiating SYN Stealth Scan at 09:41
    Scanning 10 hosts [1 port/host]
    Discovered open port 8080/tcp on 78.142.173.146
    Discovered open port 8080/tcp on 77.235.239.133
    Discovered open port 8080/tcp on 80.22.254.170
    Discovered open port 8080/tcp on 109.228.95.167
    Discovered open port 8080/tcp on 75.107.9.98
    Discovered open port 8080/tcp on 190.157.171.219
    Discovered open port 8080/tcp on 74.41.143.53
    Discovered open port 8080/tcp on 189.222.25.61
    Discovered open port 8080/tcp on 211.84.229.132
    Discovered open port 8080/tcp on 75.104.137.117



    Y en esos puertos encuentro, lo que ya me esperaba:

    Nmap scan report for 75.104.137.117
    Host is up (0.18s latency).
    Scanned at 2013-08-19 09:41:54 EDT for 188s
    PORT STATE SERVICE VERSION
    8080/tcp open http-proxy?





    Nmap scan report for adsl-109-228-l8103.crnagora.net (109.228.95.167)
    Host is up (0.19s latency).
    Scanned at 2013-08-19 09:41:54 EDT for 167s
    PORT STATE SERVICE VERSION
    8080/tcp open http-proxy?





    Host is up (0.22s latency).
    Scanned at 2013-08-19 09:41:54 EDT for 177s
    PORT STATE SERVICE VERSION
    8080/tcp open tcpwrapped
    Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
    OS fingerprint not ideal because: Missing a closed TCP port so results incomplete
    No OS matches for host
    TCP/IP fingerprint:

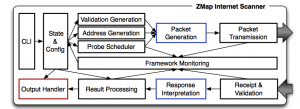

    Arquitectura de Zmap

    zmap_architecture

    Interesante proyecto para nuestras investigaciones!

    Página del proyecto => https://zmap.io/

    Paper => https://zmap.io/paper.pdf
